| Image Device 1/4" Sony Color CCD |
TPAL027X internal PTZ dome with an Auto flip Sony 480tvl camera 4.1mm-73.8mm. 18 x optical and 216 x digital zoom. Digital slow shutter DSS goes down to as low as 0.03lux. 64 preset positions & built in multi protocals. |
TPAL22X Zoom 35X Zoom is an external PTZ dome with a Sony Zoom camera and a 22 X Optical Zoom & 352 X Digital Zoom |
| Picture Elements PAL:752(H)×582(V) NTSC:752(H)×492(V) |

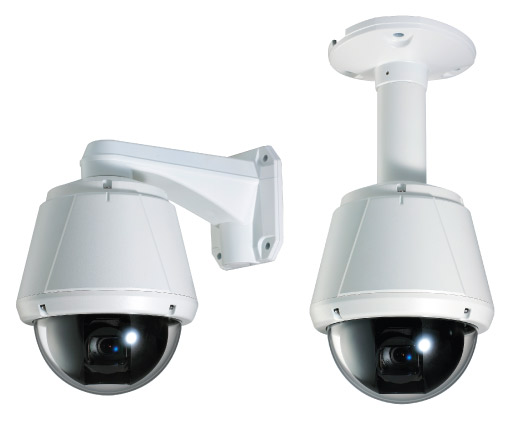

TPAL027X is an internal PTZ dome with a Sony Zoom camera and a 22 X Optical Zoom with attractive aluminium housing. Wall mount or pendant mount included. Optional Vandal proof or Chrome domes covers are available. |
TPAL22X Zoom 35X Zoom has 27 x Optical Zoom & 352 X Digital Zoomwith Day/Night function for use in low light down to 0.01 lux. |
| Scanning System NTSC:525Lines 60fields/s PAL:625Lines 50fields/s |
One major advantage of our PTZ speed domes is that we only specifiy very optically correct dome covers, that means when you use the Zoom you do not get the Focus Loss as with some other domes. |
Both have attractive aluminium housing. Wall mount included. Optional Vandal proof or Chrome domes covers are available. |
| Sensitivity 1.0 Lux |
27 x Zoom Speed Dome Camera with Sony Super HAD CCD, Camera Lens: 3.9mm - 85.8mm, 22 x optical Lens, 352 x Digital zoom, Resolution 470TVL, 1.0Lux / F1.6, S/N: 48dB, Variable Pan speed of 0.5 - 50°/sec, Variable Tilt speed 0.5 - 50°/sec, 32 preset points , Built-in Integral Multi-Protocols selected by DIP-Switch. Attractive appearance. Wall mount included. |
One major advantage of our PTZ speed domes is that we only specifiy very optically correct dome covers, that means when you use the Zoom you do not get the Focus Loss as with some other domes. |
| Resolution 480 TVL |
Optional: Vandal Proof Dome cover or Chome Dome Cover |
TPAL22X Zoom 35X Zoom with Day/Night function. 22 x Speed Dome Camera with Sony Super HAD CCD, Camera Lens: 3.9mm - 85.8mm, 22 x optical Lens, 352 x Digital zoom, Resolution 470TVL, 1.0Lux / F1.6, S/N: 48dB, Variable Pan speed of 0.5 - 50°/sec, Variable Tilt speed 0.5 - 50°/sec, 32 preset points , Built-in Integral Multi-Protocols selected by DIP-Switch. Attractive appearance. Wall mount included. |
| Lens Optical 22X, Electronic 22X |
|
TPAL22X Zoom 35X Zoom with Day/Night function. 27 x Zoom Speed Dome Camera with Sony Super HAD CCD, Camera Lens: 3.25mm - 88mm, 27 x optical Lens, 352 x Digital zoom, Resolution 480TVL, 1.0Lux / F1.5 Day and 0.01Lux/F1.5 Night, S/N: 48dB, Variable Pan speed of 0.5 - 50°/sec, Variable Tilt speed 0.5 - 50°/sec, 32 preset points , Built-in Integral Multi-Protocols selected by DIP-Switchfor use in low light down to 0.01 lux and with Infra Red lamps, Attractive appearance. Wall mount included. |
| S/N Ratio -50dB |
|
Both models require 24VAC power supply. |
| Synchronization Internal |
|
Optional: Vandal Proof Dome cover £60.00 or Chome Dome Cover £75.00 |
| Gain Control Auto |
|
|
| Back light Compensation On/Off |
|
|
